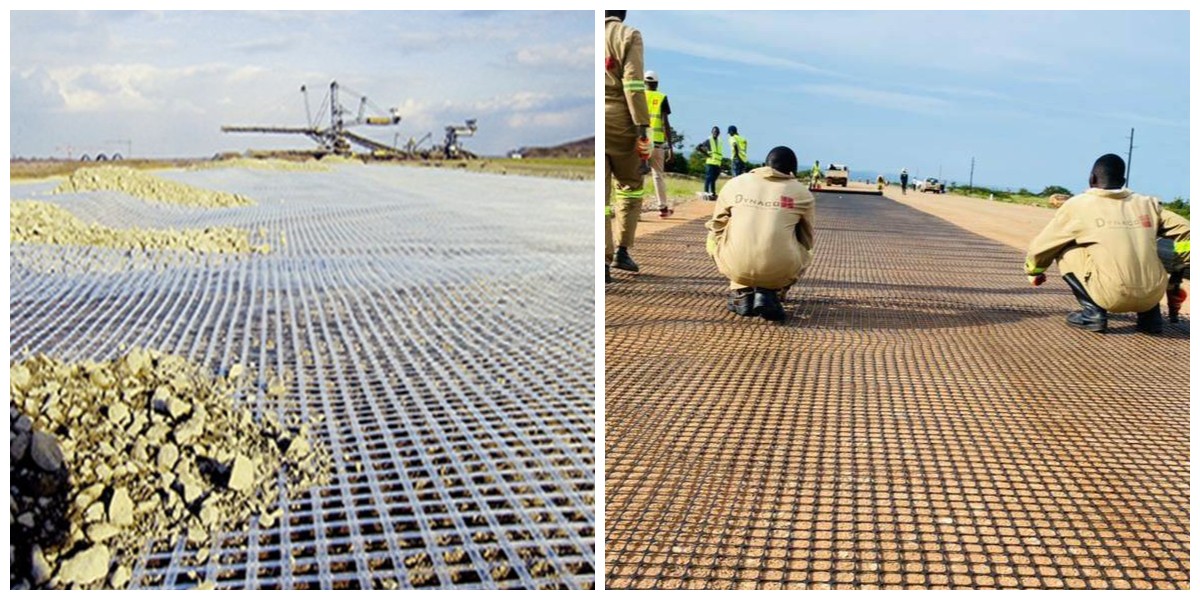

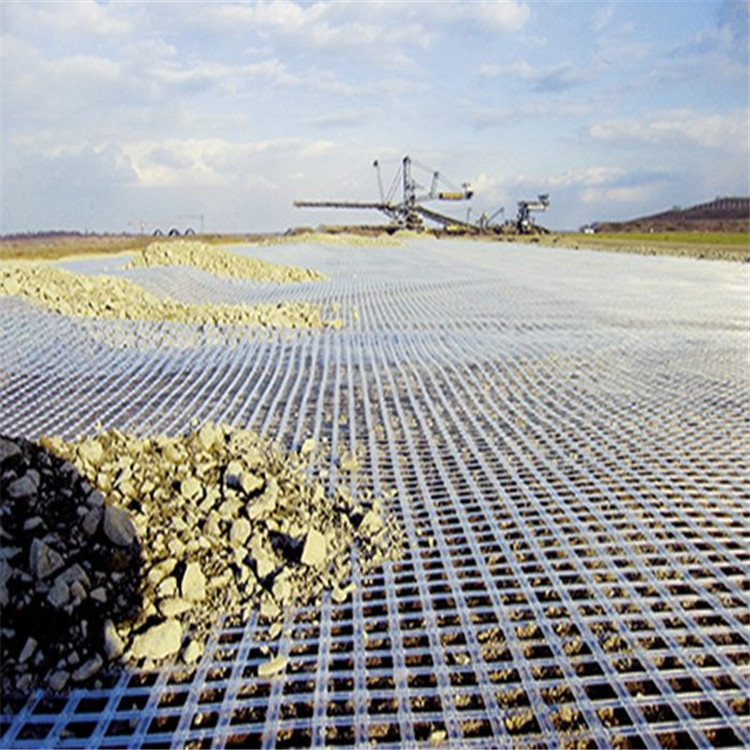

PET geogrid
Application：
1.Retaining wall reinforcement
2.Slope reinforcement
3.Base and other reinforcement uses
Our Advantages：
1. Consistent long-term physical properties
2.Ability to reinforce any soil type
3.Low creep under constant load
4. High modulus
5.Easy to install
6.High pull out resistance
7.Excellent survivability to construction stresses
PVC Coated Polyester Geogrid are made from a woven matrix of high tenacity polyester fibres that are coated with a protective polymer coating. And strengths can be very high, with design values of up to possible 1000 kN/m. The strength of a geogrid allows positive reinforcement of embankments, steep slopes, retaining walls and other vertical soil structures. Geogrids interlock with the soil providing long term reinforcement and are the most cost-effective method of creating additional horizontal space. Polyester geogrids have excellent long term creep performance.
Polyester Biaxial Geogrid
| Property | Test Method | PET 30-30 | PET 50-50 | PET 80-80 | PET 100-100 | PET 120-120 | PET 150-150 | PET 200-200 | |
| Ulimate tensile strength(kn/m) | MD | EN ISO 10319 | 30 | 50 | 80 | 100 | 120 | 150 | 200 |
| CD | 30 | 50 | 80 | 100 | 120 | 150 | 200 | ||
| Elongation at max load (%) | MD | 13 | |||||||
| CD | 13 | ||||||||
| Mesh Size (mm) | 12-50 | ||||||||
| Roll width(m) | 1-6 | ||||||||
| Roll length(m) | 50-200 | ||||||||
Polyester Uniaxial Geogrid
| Property | Test Method | PET 60-30 | PET 80-30 | PET 100-30 | PET 120-30 | PET 150-30 | PET 180-30 | PET 200-30 | |
| Ulimate tensile strength(kn/m) | MD | EN ISO 10319 | 60 | 80 | 100 | 120 | 150 | 180 | 200 |
| CD | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||
| Elongation at max load (%) | MD | 13 | |||||||
| CD | 13 | ||||||||
| Mesh Size (mm) | 12-50 | ||||||||
| Roll width(m) | 1-6 | ||||||||
| Roll length(m) | 50-200 | ||||||||

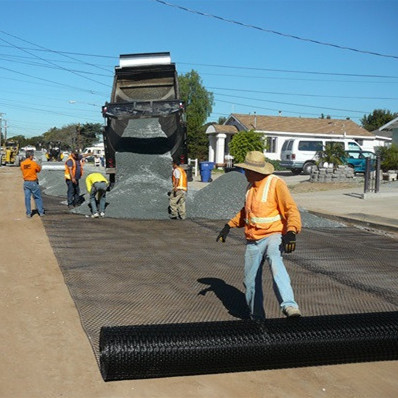

① Applicable to all kinds of highways, railways, airports, roadbed enhancements and pavement enhancements;
② Suitable for foundation reinforcement of permanent bearing such as large parking lots and wharf freight yards;

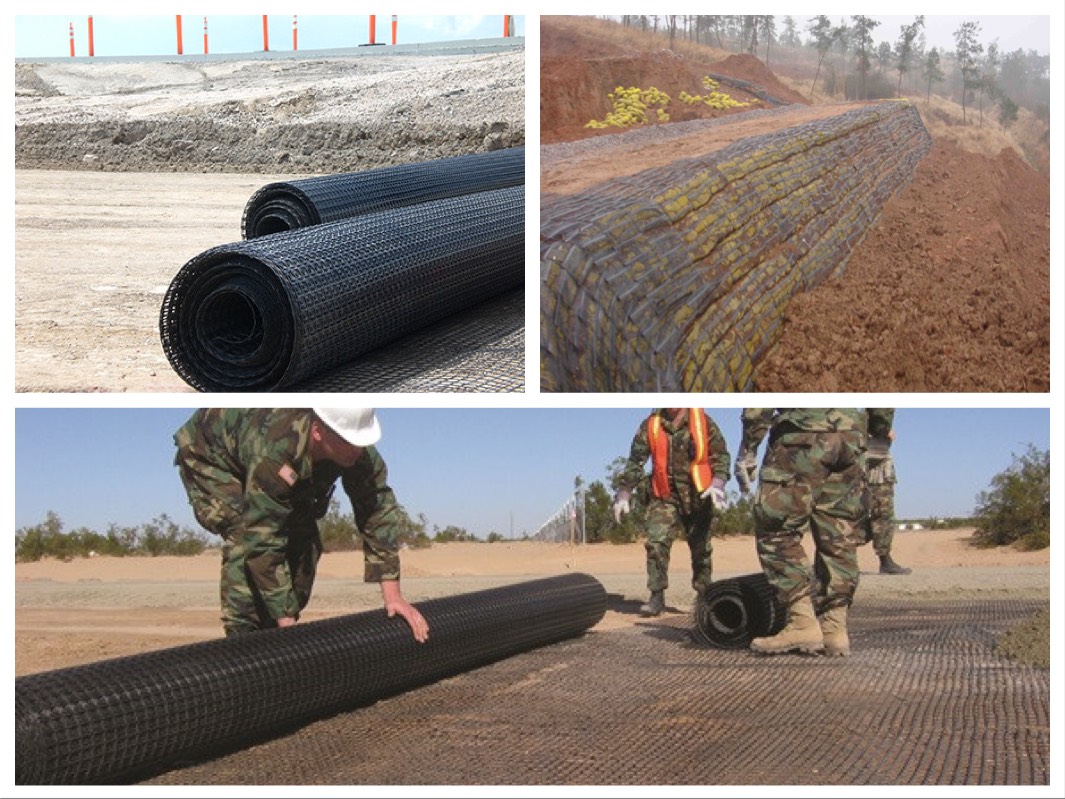

③ It is suitable for the secondary reinforcement of the soil slope reinforced by the unidirectional stretching geogrid to further increase the soil slope and prevent soil erosion;
④ Suitable for culvert reinforcement;
⑤ Slope protection for railways and highways;
⑥ Mine and tunnel reinforcement;
⑦ Special net for animal husbandry and breeding;
⑧ Special net for fish farming in cages;
