Geomembrane HDPE 2mm
HDPE geomembrane waterproofing liners are the preferred product for lining projects.HDPE liners are resistant to many different solvents and are the most widely used geomembrane liner in the world.They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price)
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.
Geomembranes HDPE 2mm are the top choice for various lining applications. These HDPE liners resist a wide range of solvents and are the most commonly used geomembrane liners worldwide. They offer outstanding chemical and UV resistance, excellent impermeability, and high strength in both yield and welded seams, making them ideal for lining purposes. (Models vary by thickness, with different thicknesses corresponding to different prices.)

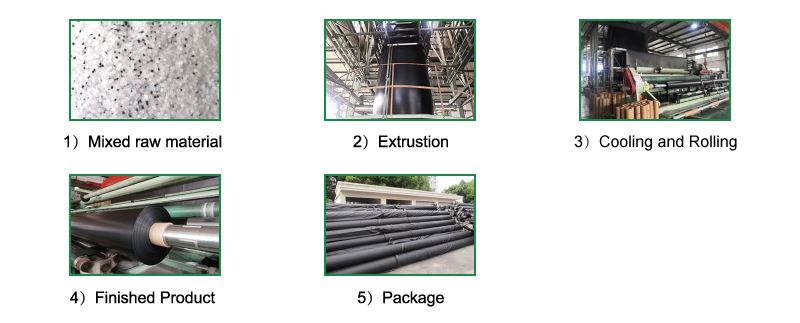

Flow of Production
Specification
1) Thickness: smooth surface 0.2mm - 3.0mm, textured surface 1.0-2.0mm
2) Width: smooth furface 1m-8m, rough surface 4m-8m
3) Length: 50m-200m/ roll or as requested.
4) Material: HDPE, LDPE, LLDPE

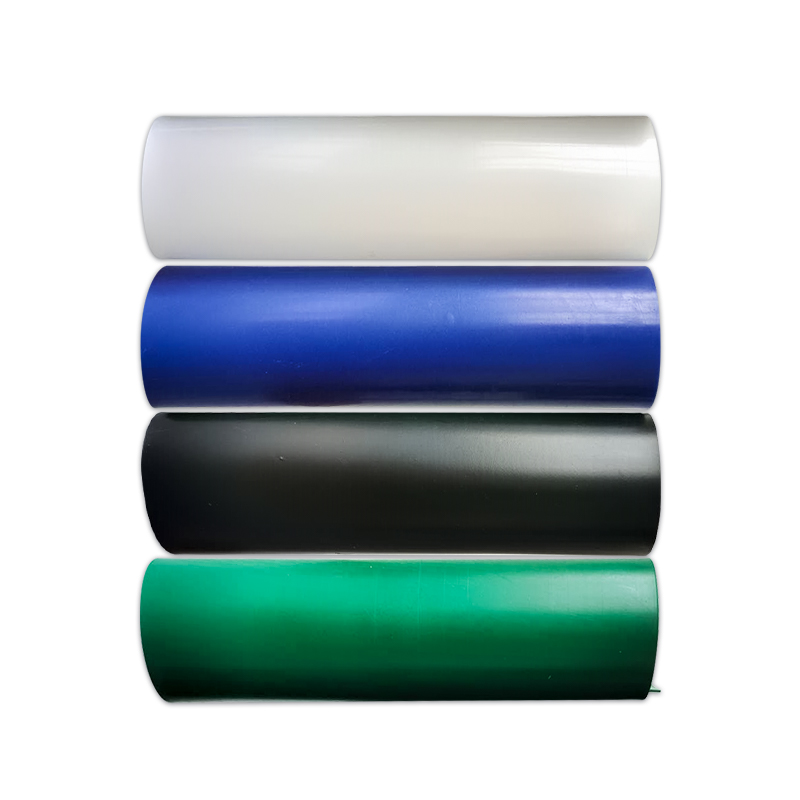

5) Color: black, white, blue, green.
6) Optional surface: smooth surface, single surface textured, dual surfaces textured.
Thickness | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 |
Density g/m2 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 |
Tensile yield strength (N/mm) | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
Tensile breaking strength (N/mm) | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
Bongation at yield(%) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
Elongation at break(%) | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 |
Tear resistance(N) | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
Puncture strength(N) | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
Tensile load stress cracking | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 |
Carbon black content(%) | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
Features
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.
Applications
(1)Aquaculture:

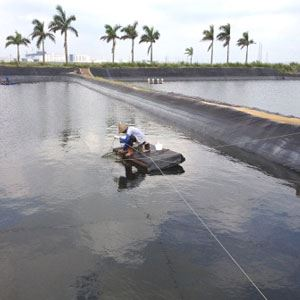

Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, and other aquaculture.
(2) Landfills:

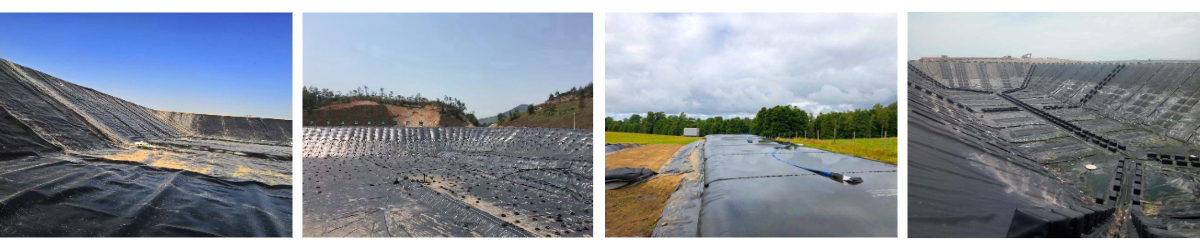

Bottom landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
(3)Water Treatment System :
HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment
systems.
(4)Mining:
HDPE geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom
line of the tailings seepage control, etc
FAQ
1. Which Thickness HDPE Geomembrane Should I Use?
The thickness range of HDPE geomembrane of Hongxiang brand is from 0.20mm to 3.0mm.The larger thickness, the better properties, the longer lifespan. The thickness you need depends on your application scope. For example, according to our experiences, for aquaculture (fish farming pond or shrimp pond), usually use 0.35mm,0.5mm or 0.75mm thickness HDPE geomembrane; for landfill site, usually use 1.0mm,1.5mm or 2.0mm HDPE geomembrane.
2. How Much Does HDPE Geomembrane price?
There are many factors that affect the price of geomembrane:
1.Thickness:the thickness range of HDPE geomembrane of Hongxiang brand is from 0.20mm to 3.0mm.The larger thickness, the longer lifespan,the higher price.
2.Surface:according to the surface of HDPE geomembrane, Hongxiang HDPE geomembrane can be devided into three types, double sides smooth, one side textured, and double sides textured. The price of textured geomembrane is higher than smooth one.
3.Color:ordinary color of Hongxiang HDPE geomembrane is black, other colors can be customized, and the price is higher than black one.
4.Quantity:different quantity, different price.
3.What's Your Payment Terms?
Payment terms of Hongxiang is usually 30% deposit and 70% before shipment from factory based on FOB or EXW terms, or 100% irrevocable L/C at sight; 30% deposit and 70% against BL copy based on CNF or CIF terms; for the order of amount of less than US$3000,100% deposit is advised or is via the way of alibaba trade assurance order; all of the orders from alibaba B2B platform can be deal with as alibaba trade assurance orders; other terms can be negotiated.
4. What's Your Delivery Time?
We, Hongxiang, are professional manufacturer of HDPE geomembrane in China, our production capacity is 60 tons per day. Our factory is located in ,China, as we all know, is a famous port city in China, so it's very convenient for shipment by sea. Our delivery time is usually 7-14 days.
5.How Long Is Your Quality Guarantee Time?
We, Hongxiang, are professional manufacturer of GRI GM13 standard HDPE geomembrane in China, using 100% virgin material, so our product quality is high. Quality guarantee time is one year.
6. How Long Does HDPE Geomembrane Last?
There are many factors that affect the service life of hdpe geomembrane, such as quality of raw materials, thickness, production process, natural environment and human factors etc. Under normal circumstances, the service life of hdpe geomembrane underground is about 30 -50 years (for reference only). We, Hongxiang, are professional manufacturer of GRI GM13 standard HDPE geomembrane in China, using 100% virgin material, so our product quality is high. If you have any inquiry, please contact me freely, then I'll give you our best price .
7. Is Hdpe Pond Liner Waterproof ?
Yes,hdpe pond liner is waterproof,widely used in various environmental protection projects. Hongxiang GM13 hdpe pond liner is made of highest quality resin. The main components are 97.5% of HDPE and 2.5% of Carbon black/anti-aging agent/anti-oxygen/UV absorbent / stabilizer and other accessory. It has great anti-seepage and impermeability property, so it's one of the best
8. Why Use HDPE Geomembrane?
HDPE geomembrane is made of high-density polyethylene resin, and it has good impermeability properties. As compared with other materials, HDPE geomembrane has a better anti-seepage ratio, service life and economic cost, so its application scope is relatively wide. HDPE geomembrane has excellent temperature adaptability, weldability, weather resistance, aging resistance, chemical corrosion resistance, environmental cracking resistance and puncture resistance property. Therefore, it is particularly suitable for some underground project, mining, landfills, waste sewage treatment, etc.
9. What Thickness HDPE Geomembrane Is Best?
The thickness range of HDPE geomembrane of Hongxiang brand is from 0.20mm to 3.0mm.The larger thickness, the better property, the longer lifespan.
