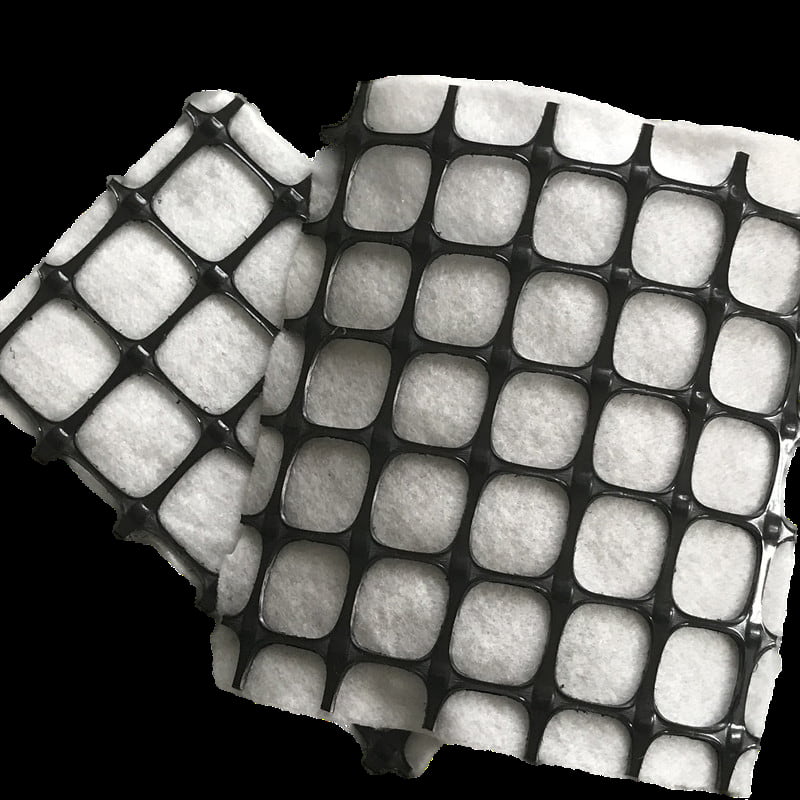

PP Biaxial Composite Geogrid

                                                            PP Geogrid Composite

Description:

Biaxial polypropylene soil reinforcement and separation and separation geogrid composite.

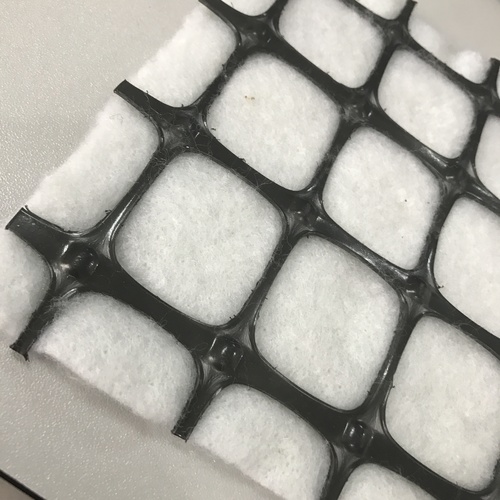

 PP geogrid composite is formed by punching holes and stretching a stiff polypropylene sheet to form a geogrid with uniform openings which then has a polyester (PET) nonwoven geotextile heat bonded to one side.

 PP geogrid composites provide stiff, high modulus reinforcement with the added benefit of separation and filtration. These features combine to allow the construction of roads and other amenities over weak, low bearing subgrades.

Benefits and Features

Reinforcement/stabilisation, separation, filtration and drainage combined. Making installation easier and faster in a single operation to provide significant cost and time savings

Increases lateral confinement of unbound & modified gravel material layers

Improves soil/subgrade bearing capacity

Helps control expansive soil/subgrade movements and associated longitudinal cracks in sealed road pavements

Robust against installation damage, and chemical and biological attack

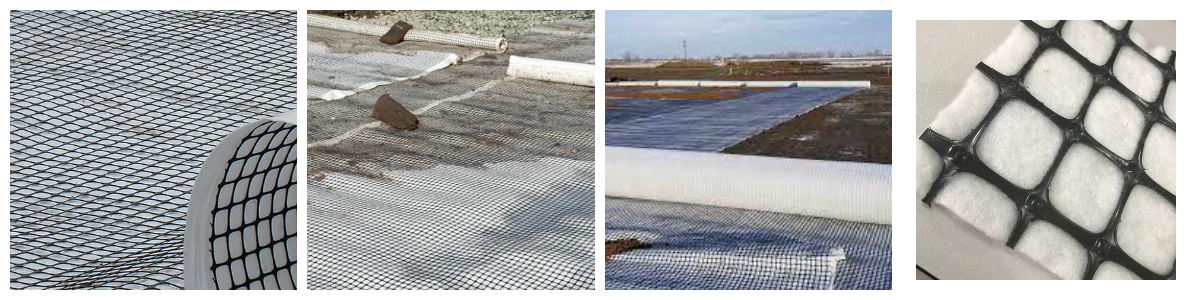

Application

Base, sub-base stabilisation and reinforcement

Subgrade / soil stabilisation and reinforcement

Raft reinforcement construction

Road, railway and airport pavements

Suitable for placement directly on subgrade due to separation benefits of the attached geotextile
